Two-Layer Unified Extension Architecture

The SqlParserX parsing kernel consists of two connected, structurally symmetric extension systems, each in its own Jar module:

  • SQL syntax layer (sqlparserx-syntax): built on official Druid, extending Lexer, StatementParser and AST nodes per datasource through unified dialect routing, parser base and AST model.
  • SqlParserX business layer (sqlparserx-core): extending table parsing, lineage and SQL rewriting per datasource through unified dialect routing, the ISqlParser contract and business clients.

Both layers follow the pattern unified entry → common base → unified extension point → datasource implementation → unified result. When adding a datasource, syntax differences are extended in the Druid layer and business differences in the SqlParserX layer, aligned via DbType and Druid AST.

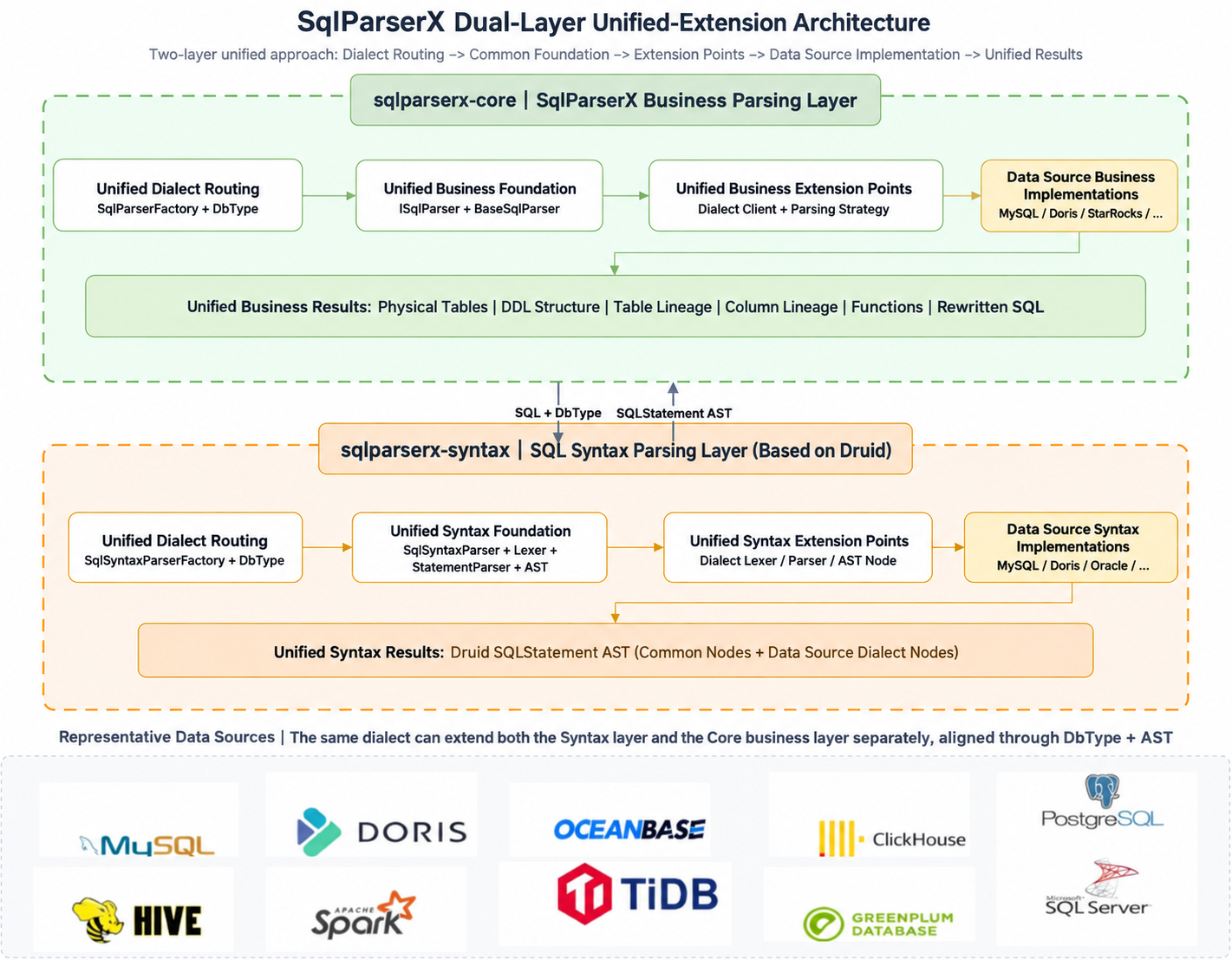

SqlParserX two-layer unified extension architecture

Overall Architecture​

Module Dependencies​

Access: sqlparserx-web (REST) / sqlparserx-ui
                 │ unified ISqlParser contract
Business layer:  sqlparserx-core
                 │ SQL + DbType / SQLStatement AST
Syntax layer:    sqlparserx-syntax (Druid 1.2.28)

Business extensions follow SqlParserFactory → ISqlParser → BaseSqlParser → dialect implementations.
